VNG Neotherm™ Neonatal Cooling System

Microprocessor-based, servo-controlled cooling-warming system for therapeutic hypothermia in hypoxic-ischemic encephalopathy (HIE) management.

TEC (thermoelectric cooling) technology, continuous rectal/skin/mattress temperature monitoring, 72-hour data memory. By VNG Medical.

At a glance

Servo-controlled TEC cooling and rewarming for therapeutic hypothermia in HIE
Continuous rectal, skin and mattress temperature display
High/low temperature, water-flow-failure and power-failure alarms
72-hour data memory with CSV export to portable media/computer
Mounted on a sturdy, castor-wheeled trolley with brakes
3-year warranty with 7-year post-warranty CAMC and spares availability

Contact our team for pricing, configuration options and availability.

Contact sales

Delivered PAN-India — every state, metro and tier-2/3 city, backed by our network of 120+ dealers. Capital equipment is installed and commissioned by our team or your local dealer; consumables ship directly nationwide.

Categories NICU/Pediatric

OVERVIEW

VNG Neotherm™ delivers therapeutic hypothermia (cooling therapy) for neonates — cooling the baby below normal body temperature to help the brain recover from a hypoxic-ischaemic injury. Treatment is generally most effective when started within six hours of birth. The system uses thermoelectric cooling (TEC) technology with a single mattress providing full-body neonatal coverage, and is mounted on a sturdy, castor-wheeled trolley with brakes.

FEATURES

Microprocessor-based, servo-controlled cooling and rewarming
TEC (thermoelectric cooling) technology; single full-body coverage mattress
Cooling capability down to 30°C; rewarming to normal temperature (36.5°C) at a user-selected rate

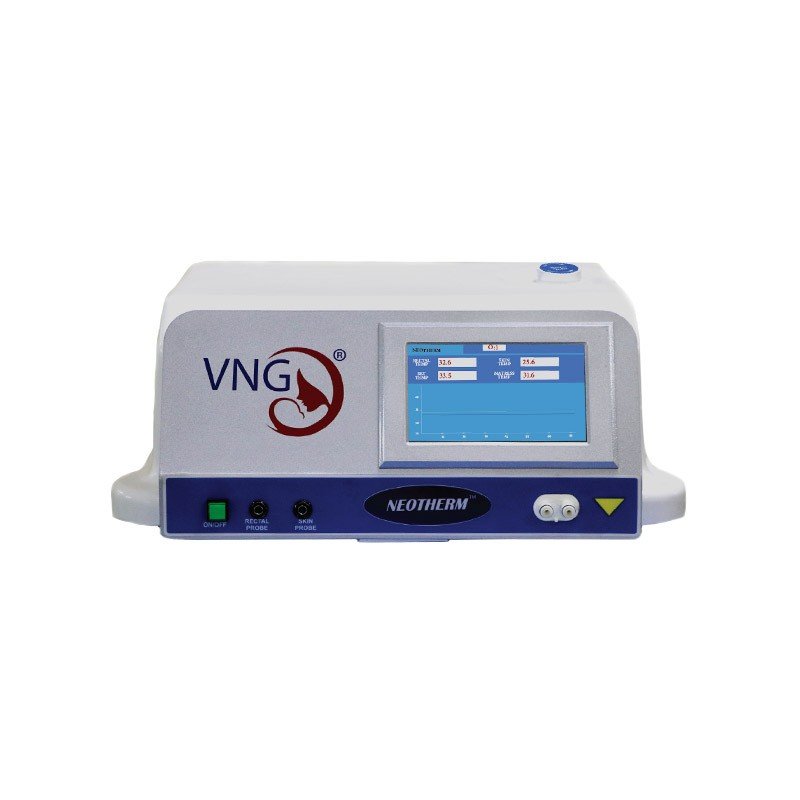

Rectal temperature monitoring drives servo control, with continuous display of set, rectal, skin and mattress temperature
High/low temperature alarms (>1°C deviation from target), water-flow-failure and power-failure alarms
Data transfer to portable media/computer in CSV format; 72-hour memory for set and measured parameters

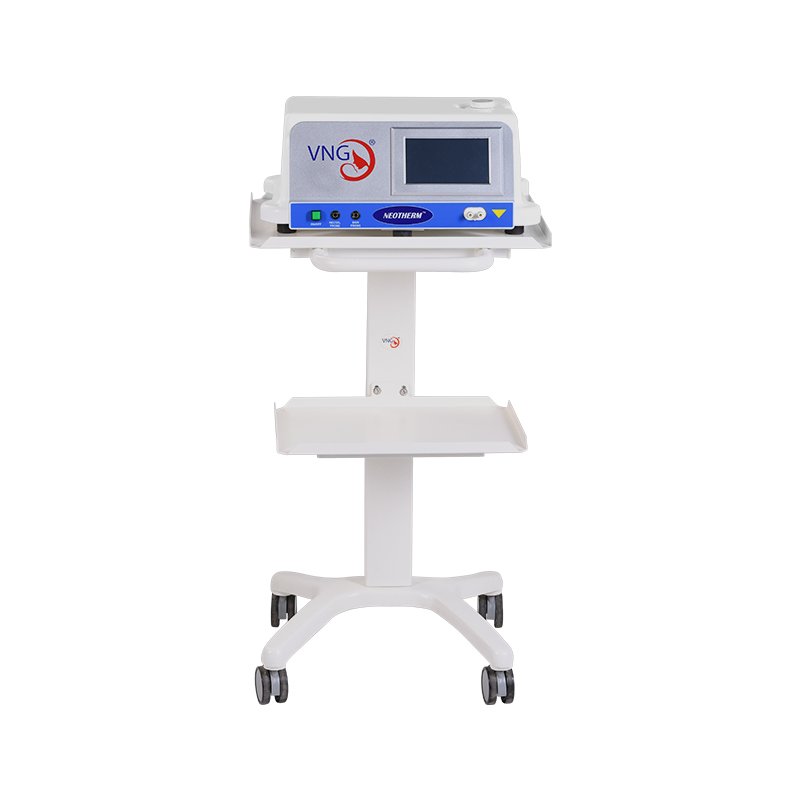

Mounted on a sturdy trolley with castor wheels and brakes

SPECIFICATIONS

Dimensions: 460mm × 30mm × 530mm (L×H×W); height with trolley 1092mm; weight 23kg
Electricity: 1.5A / 230VAC, max 345W
Temperature range: 12°C–39°C; maximum patient weight: 10kg
Fluid: distilled water, 500ml inner tank + 500ml fill-up set
Noise output: 45–49.5dB at 1m

INCLUDED ACCESSORIES

5 × rectal temperature probes
5 × skin temperature probes
5 × reusable cooling mattresses

WARRANTY

3-year warranty, with a 7-year post-warranty Comprehensive Annual Maintenance Contract (CAMC) option and guaranteed spares availability for 7 years post-warranty. Installation, demonstration and staff training are provided.

Frequently asked questions

What is the VNG Neotherm™ used for?

It delivers therapeutic hypothermia (controlled cooling) to neonates with hypoxic-ischaemic encephalopathy (HIE), helping the brain recover from a hypoxic-ischaemic injury. Treatment is generally most effective when started within six hours of birth.

How does it control temperature?

It's a microprocessor-based, servo-controlled system using thermoelectric cooling (TEC) technology, with a full-body coverage mattress and rectal temperature monitoring driving the servo control.

What's the maximum patient weight?

10kg.

Can treatment data be exported?

Yes — the system holds 72 hours of set and measured parameters in memory and can transfer data to portable media or a computer in CSV format.

What's included with the system?

5 rectal temperature probes, 5 skin temperature probes, and 5 reusable cooling mattresses, mounted on a trolley with castor wheels and brakes.

What warranty and support does VNG provide?

A 3-year warranty, with a 7-year post-warranty Comprehensive Annual Maintenance Contract (CAMC) option, guaranteed spares availability for 7 years post-warranty, and installation, demonstration and staff training.
