VNG

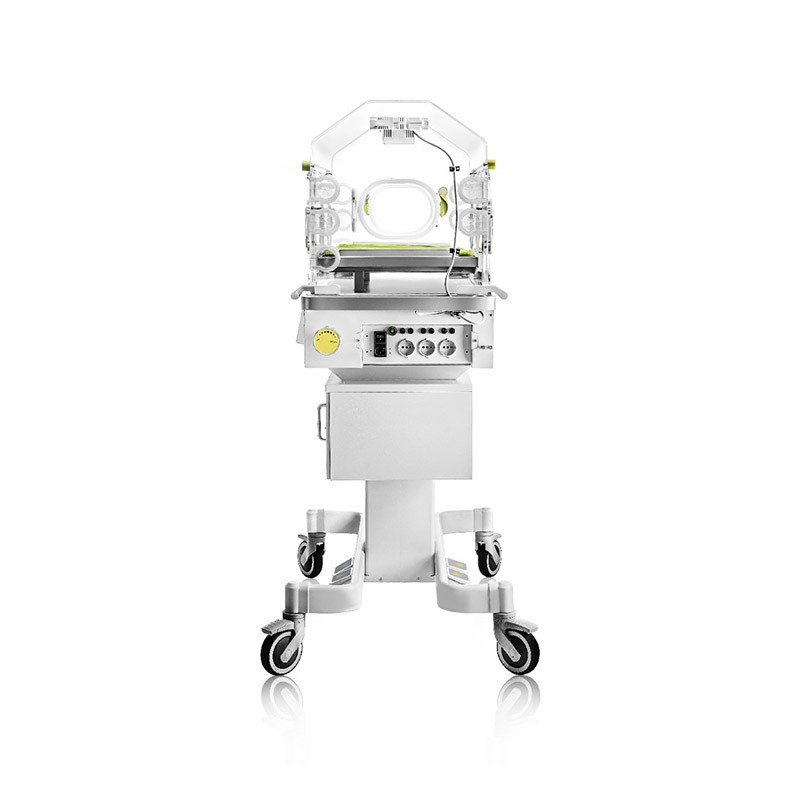

VNG Infant ICU Incubator 3000
Contact our team for pricing, configuration options and availability.
Thanks! Our team will contact you shortly.
Closed-care NICU incubator with air- and skin-mode servo temperature control, plus optional humidity, oxygen and weighing modules.

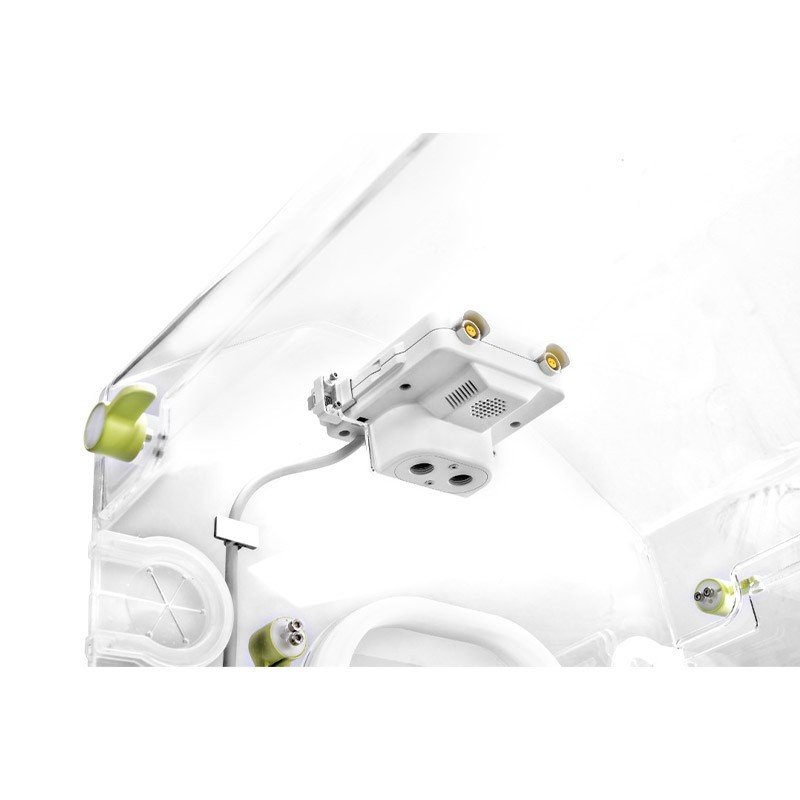

An ambient-temperature probe compares ambient and set temperature, adjusting heating output for a stable inside-hood microclimate. By VNG Medical.
At a glance
- Air- and skin-mode servo temperature control for stable microclimate
- Optional servo humidity control (30–95% RH) with 24-hour reservoir capacity
- Optional servo oxygen control (21–65% FiO2)
- Optional integrated weighing scale (300g–8kg, 1g resolution)
- Low operating noise (≤45dBA) and low CO₂ build-up (<0.5%)
- Tiltable soft-bed mattress (±12°) for positioning
OVERVIEW
The VNG Infant Incubator 3000 is a closed-care NICU incubator. An ambient temperature probe compares the gap between ambient and set temperature and adjusts heating power output accordingly, to provide a more stable inside-hood air temperature for the infant. Optional servo-controlled humidity and oxygen modules, and a built-in weighing scale option, let it be configured for higher-acuity NICU care.
TEMPERATURE CONTROL
- Air mode control range: 20°C–37°C, accuracy ≤±1.0°C
- Skin mode control range: 34°C–37°C, accuracy ±0.3°C
- Temperature rise time at 22°C ambient: under 20 minutes
- Temperature uniformity: 0.8°C; variability: <0.2°C
OPTIONAL HUMIDITY CONTROL (SERVO)
- Control range: 30%–95% RH, accuracy ±5% RH
- Reservoir capacity: 1500ml, up to 24 hours' operation without refilling
OPTIONAL OXYGEN CONTROL (SERVO)
- Control range: 21% to 65%
- Display accuracy: ±2%; control accuracy at 100% calibration: ±3%
OPTIONAL WEIGHING SCALE
- Weight range: 300g to 8kg
- Display resolution: 1g; accuracy: ±10g
OTHER SPECIFICATIONS
- Soft bed mattress: 73.6 × 38.6 × 1.8cm, tilt ±12°
- Air flow velocity inside hood: <10cm/sec
- Operating noise level: ≤45dBA
- CO² level: <0.5%
- Operating environment: 20°C–30°C, 10–95% RH
Frequently asked questions
What kind of incubator is the VNG Infant Incubator 3000?
A closed-care NICU incubator with air- and skin-mode servo-controlled temperature regulation, and optional humidity, oxygen and weighing modules.
How does it maintain a stable temperature?
An ambient temperature probe compares ambient and set temperature and adjusts heating output accordingly, keeping the inside-hood air temperature stable.
Can it control humidity and oxygen?
Yes, as optional servo-controlled modules — humidity from 30–95% RH, and oxygen from 21–65% FiO2.
Does it include a weighing scale?
A weighing scale is available as an optional module, covering 300g to 8kg with 1g display resolution.
How noisy is it inside the hood?
Operating noise is rated at ≤45dBA, with CO₂ levels kept under 0.5%.
What's the mattress tilt range?
The soft-bed mattress tilts ±12° for positioning the infant.
